真空位移台MB20

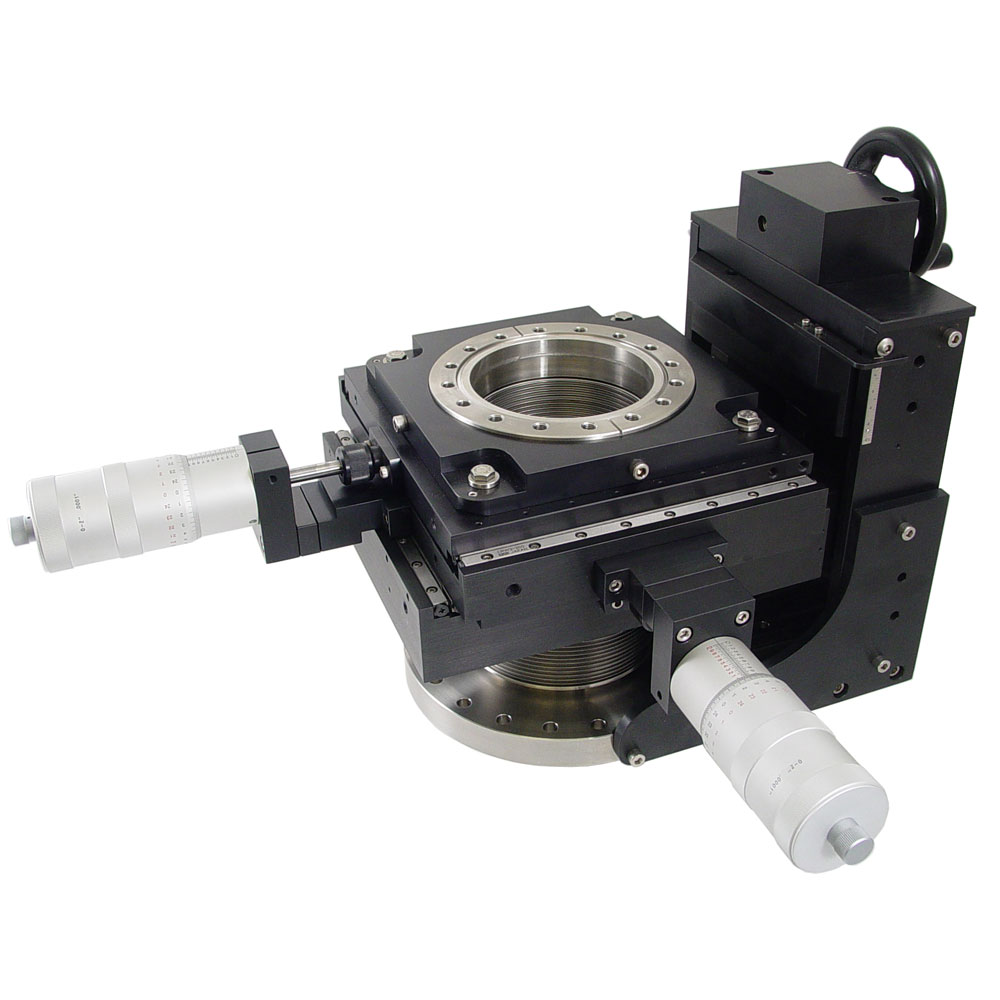

The MB2000 precision manipulator provides unmatched performance at an exceptional price.

The rugged construction is designed to withstand the heaviest loads from both atmosphere (~200 lbs / 90 Kg!) as well as from scientific instruments.

• Standard features and benefits
• Top Flange Tilt – with ±2° adjustment.
• X-axis micrometer may be mounted on either left or right side of manipulator
• Bellows I.D. 4.0″ (101 mm) in the MB2000 Series(circular pattern).
• Compact, rugged design with full Z axis frame provides extra rigidity to allow strokes in excess of 36″ (900 mm).
• Adjustable, crossed roller bearings for extra rigidity.
• XY travel ± 0.5″ (12.5 mm) or ± 1.0″ (25 mm) circular pattern
• Standard X,Y & Z resolution >0.0005″ (12.5 µ )
• Optional high resolution large micrometers
• Repeatability to >0.00005″ (1.25 µ ) with large micrometers.
• Field conversion to stepper motors in 15 minutes.
• Top flange is tapped as standard or may be non-tapped to suit your equipment.
• Z travel 4″ -36″ (100 – 900 mm)
• Consult factory for longer strokes.
• Base flange 6.0″ (150 mm) conflat standard.
• Optional base flange 8″ or 10″ (or larger) conflat.
• See drawing for dimensions
• Consult the supplied User’s manual for more information.
• Contact the factory for CAD models
